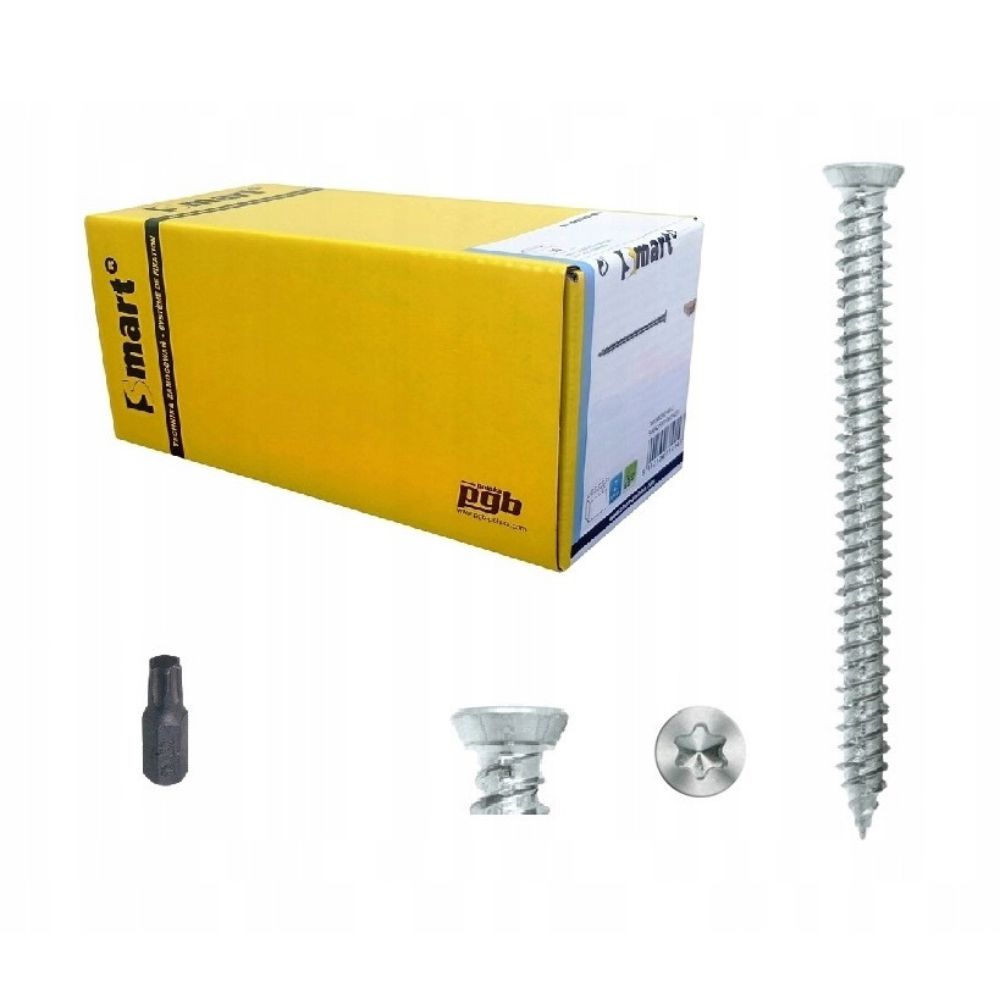

Smart PGB 7.5×72 mm conical frame screw 100 pcs + TORX T30 bit

SMART CHD T30 7.5 × 72 mm frame screw, conical head, zinc-plated (code SM0WSF0010750723)

Professional frame screw by SMART, designed for mounting window and door frames directly into wood, concrete, or brick. Thanks to its self-drilling tip and optimal thread geometry, it ensures quick, secure, and aesthetic fastening without the need for additional expansion plugs.

Product Advantages:

• No plugs required – self-drilling thread eliminates the need for expansion, speeding up installation work
• Quick work – small pilot drill diameter Ø 6 mm enables efficient screw placement
• Stress-free installation – "stress-free" installation guarantees even insertion and stable profile positioning
• HiLo Thread – dual-level thread optimizes grip in material, increases holding strength, and prevents wood splitting
• Torx T30 Drive – excellent torque transmission, reduces "cam-out" effect, and extends bit lifespan
• Corrosion protection – durable galvanic coating (Zp) protects against corrosion even in harsh conditions

Applications:

• fastening and leveling window and door frames in wooden, concrete, and masonry structures
• installation of under-window profiles and thresholds in insulation systems
• mounting aluminum-PVC elements and lightweight structures
• wherever quick, secure, and aesthetic frame fastening is required

Technical Data:

• Product Code: SM0WSF0010750723
• Brand: SMART
• Material: hardened steel, galvanic zinc coating
• Dimensions: Ø 7.5 mm × 72 mm
• Pilot drill diameter (d₀): 6 mm
• Drive: Torx T30
• Head type: conical
• Package quantity: 100 pcs
• Country of production: Poland (PGB-Polska)
