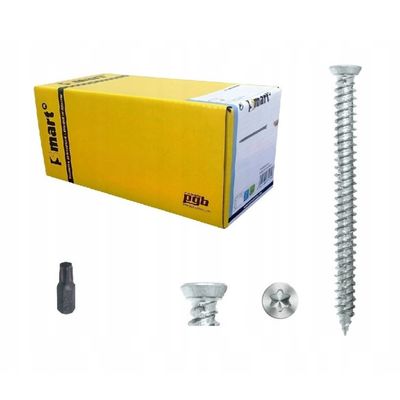

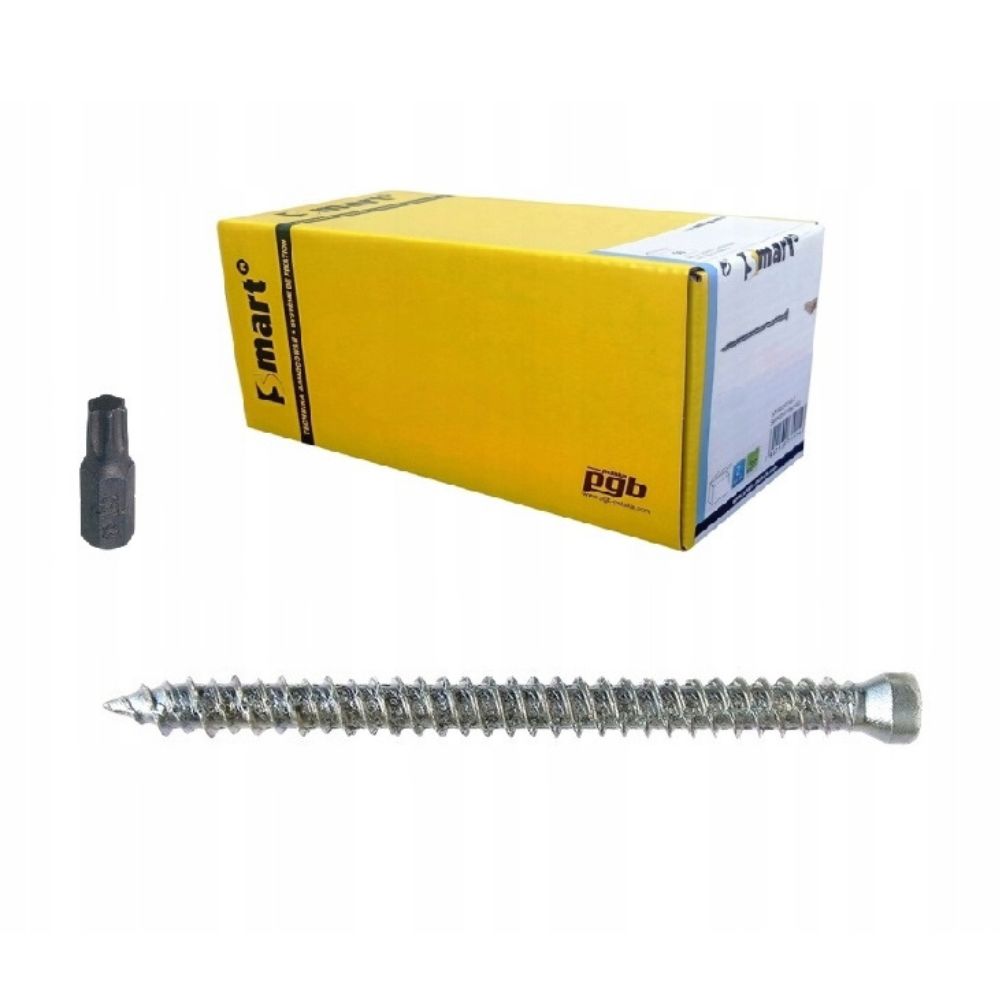

Frame Screw Smart PGB 7.5×42 mm cylindrical 100 pcs + TORX T30 bit

SMART CHD T30 Frame Screw 7.5 × 42 mm, cylindrical head, zinc-plated (code SM0WSC0010750423)

Professional frame screw by SMART, designed for mounting window and door frames directly into wood, concrete, or brick. Thanks to its self-drilling tip and optimal thread geometry, it ensures fast, secure, and aesthetic fastening without the need for additional expansion plugs.

Product advantages:

• No plugs required – the self-drilling thread eliminates the need for anchors, speeding up installation work.
• Fast work – small pilot hole diameter Ø 6 mm allows for easy and quick screw placement.
• Stress-free installation – ensures uniform insertion and stable profile positioning.
• HiLo thread – dual-level thread optimizes grip in the material, increasing holding strength and preventing wood splitting.
• Torx T30 drive – excellent torque transmission, reduced "cam-out" effect, and longer bit lifespan.
• Corrosion protection – durable galvanic coating (Zp) protects against corrosion even in harsh conditions.

Applications:

• fastening and leveling window and door frames in wooden, concrete, and masonry structures,
• installation of sub-sill profiles and bases in insulation systems,
• anchoring aluminum-PVC elements and light constructions,
• wherever quick, secure, and aesthetic frame fastening is needed.

Technical data:

• Product code: SM0WSC0010750423
• Brand: SMART
• Material: hardened steel, zinc-plated galvanic coating
• Dimensions: Ø 7.5 mm × 42 mm
• Pilot hole diameter (d₀): 6 mm
• Drive: Torx T30
• Head type: cylindrical
• Quantity in package: 100 pcs
• Country of production: Poland (PGB-Polska)
