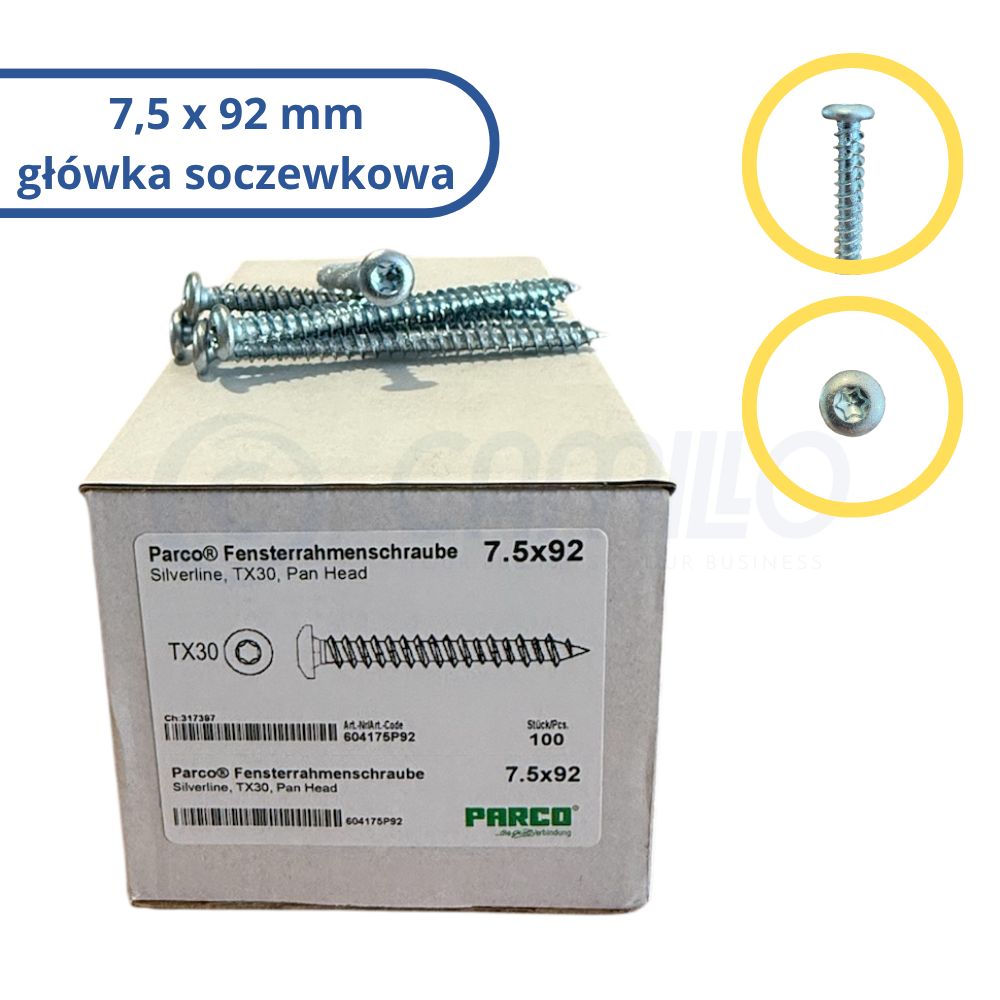

Parco Frame Screw 7.5×92 mm Pan Head 100 pcs

Parco Frame Screw 7.5 × 92 mm, Pan Head, TX30, Zinc Plated

Robust frame screw by PARCO, designed for mounting window and door frames and lightweight aluminum-PVC structures directly into concrete, bricks, and other substrates.

Product advantages:

• Aesthetic and safe Pan Head – the convex Pan Head shape does not sink into the material and protects thin-walled PVC or aluminum profiles from deformation.
• Increased pressure surface – larger head-to-frame contact evenly distributes the load, minimizing the risk of damage.
• No washers required – the Pan Head eliminates the need for additional washers, speeding up work and reducing material costs.
• Double thread (Doppelganggewinde) – ensures quick and secure grip of the screw, enabling installation without expansion plugs.
• Self-tapping tip – allows stress-free fastening of the frame in a hole with a diameter of φ 6–6.5 mm, without vibrations and risk of cracks.
• IFT-certified quality – product tested and approved by the Rosenheim Window Technology Institute (IFT).

Applications:

• mounting and leveling window and door frames in PVC, wooden, and aluminum constructions,
• permanent fastening of frames into concrete, solid and ceramic bricks, blocks, and lightweight concrete,
• installation of sub-sill profiles and bases in insulation systems,
• fastening lightweight aluminum and steel structures without the need for expansion plugs.

Technical data:

• Catalog code: 604175P92
• Brand: PARCO
• Material: hardened steel, galvanic zinc coating (Silverline)
• Dimensions: Ø 7.5 mm × 92 mm
• Head: Pan Head
• Drive: Torx TX30
• Thread: full, double (Doppelganggewinde)
• Pre-drilling: Ø 6–6.5 mm
• Quantity in package: 100 pcs
• Country of production: Germany
