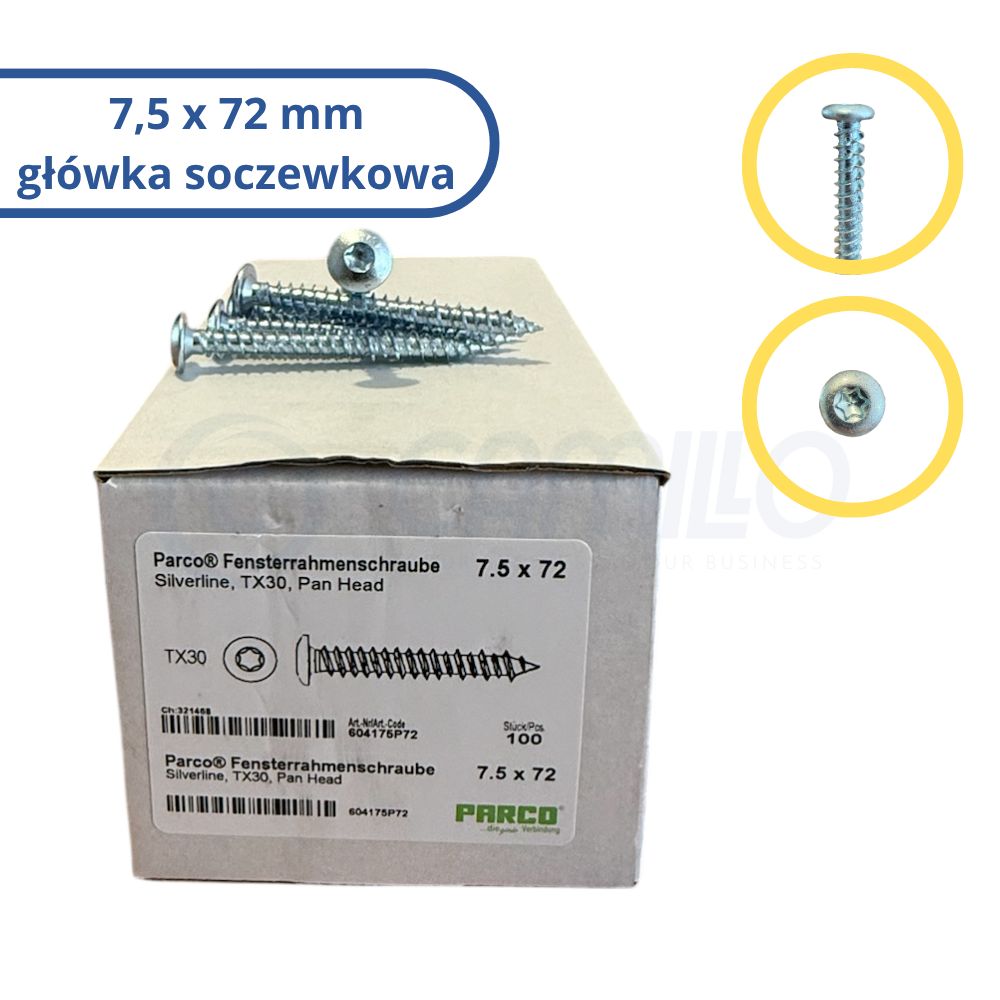

Parco Frame Screw 7.5×72 mm Pan Head 100 pcs

Parco Frame Screw 7.5 × 72 mm, Pan Head, TX30, Zinc-Coated

Robust frame screw by PARCO, designed for mounting window and door frames as well as lightweight aluminum-PVC structures directly into concrete, bricks, and other substrates.

Product Advantages:

• Aesthetic and Safe Pan Head – the convex Pan Head shape does not sink into the material and protects thin-walled PVC or aluminum profiles from deformation.
• Increased Contact Surface – greater head-to-frame contact evenly distributes the load, minimizing the risk of damage.
• No Washers Needed – the Pan Head eliminates the need for additional washers, speeding up work and reducing material costs.
• Double Thread (Doppelganggewinde) – ensures quick and secure grip of the screw, enabling installation without expansion plugs.
• Self-Tapping Tip – allows stress-free frame mounting in holes with a diameter of φ 6–6.5 mm, without vibrations or cracking risks.
• IFT Certified Quality – product tested and approved by the Window Technology Institute in Rosenheim (IFT).

Applications:

• mounting and leveling window and door frames in PVC, wooden, and aluminum constructions,
• permanent fixing of frames in concrete, solid and ceramic bricks, blocks, and lightweight concrete,
• installation of sill profiles and bases in insulation systems,
• fixing lightweight aluminum and steel structures without the need for expansion plugs.

Technical Data:

• Catalog Code: 604175P72
• Brand: PARCO
• Material: hardened steel, galvanic zinc coating (Silverline)
• Dimensions: Ø 7.5 mm × 72 mm
• Head: Pan Head
• Drive: Torx TX30
• Thread: full, double (Doppelganggewinde)
• Pre-drilling: Ø 6–6.5 mm
• Package Quantity: 100 pcs
• Country of Manufacture: Germany

Order Parco Frame Screws 7.5 × 72 mm with Pan Head at www.camillo.pl – a combination of performance, aesthetics, and reliability in every installation!
