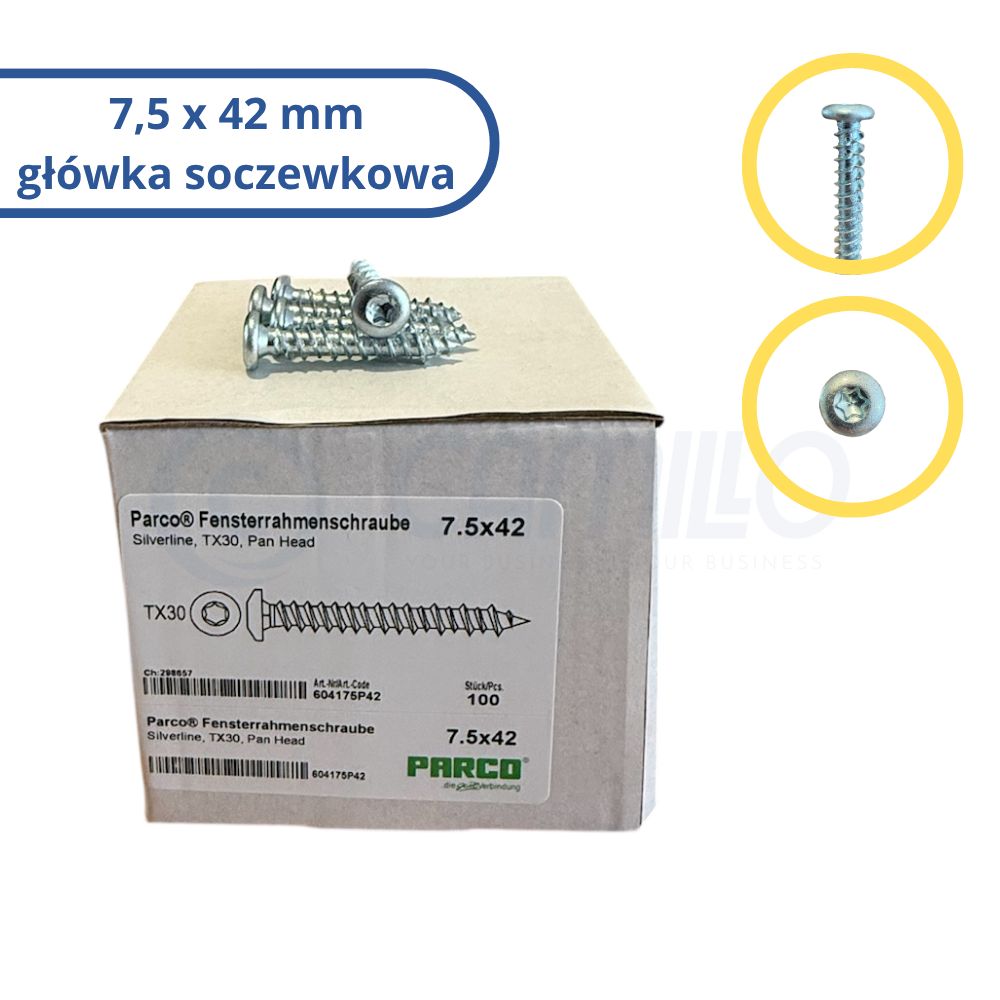

Parco Frame Screw 7.5×42 mm Pan Head, 100 pcs

Parco Frame Screw 7.5 × 42 mm, Pan Head, TX30, Zinc Plated

Durable frame screw by PARCO, designed for mounting window and door frames and lightweight aluminum-PVC structures directly into concrete, brick, and other substrates.

Product Advantages:

• Aesthetic and secure Pan Head – the convex Pan Head shape does not sink into the material and protects thin-walled PVC or aluminum profiles from deformation.
• Increased contact area – larger head-to-frame contact evenly distributes load, minimizing the risk of damage.
• No washers needed – the Pan Head eliminates the need for additional washers, speeding up work and reducing material costs.
• Double thread (Doppelganggewinde) – ensures quick and secure screw grip, enabling installation without the use of anchors.
• Self-tapping tip – allows stress-free frame mounting in holes with a diameter of φ 6–6.5 mm, without vibrations or risk of cracks.
• IFT-certified quality – product tested and approved by the Window Technology Institute in Rosenheim (IFT).

Applications:

• mounting and leveling window and door frames in PVC, wooden, and aluminum constructions,
• durable frame fastening in concrete, solid and ceramic bricks, blocks, and lightweight concrete,
• installation of sub-sill profiles and bases in insulation systems,
• fastening lightweight aluminum and steel structures without the need for anchors.

Technical Specifications:

• Catalog Code: 604175P42
• Brand: PARCO
• Material: hardened steel, galvanic zinc plating (Silverline)
• Dimensions: Ø 7.5 mm × 42 mm
• Head: Pan Head
• Drive: Torx TX30
• Thread: full, double (Doppelganggewinde)
• Pre-drilling: Ø 6–6.5 mm
• Packaging Quantity: 100 pcs
• Country of Origin: Germany
