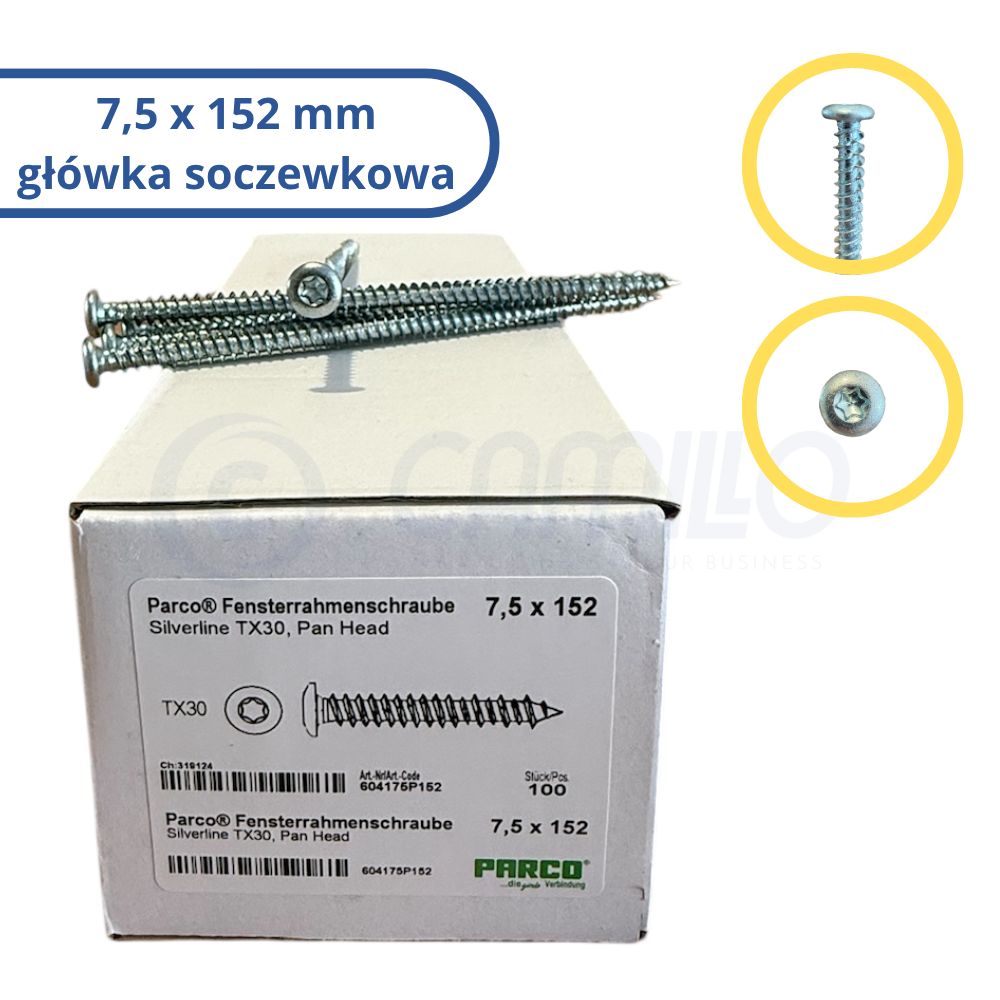

Parco Frame Screw 7.5×152 mm Pan Head, 100 pcs

Parco Frame Screw 7.5 × 152 mm, Pan Head, TX30, Zinc-Plated

Robust frame screw by PARCO, designed for mounting window and door frames and lightweight aluminum-PVC constructions directly into concrete, brick, and other substrates.

Product Advantages:

• Aesthetic and safe Pan Head – the convex Pan Head shape does not sink into the material and protects thin-walled PVC or aluminum profiles from deformation.
• Enlarged pressure surface – greater contact of the head with the frame evenly distributes the load, minimizing the risk of damage.
• No washers required – the Pan Head eliminates the need for additional washers, speeding up work and reducing material costs.
• Double thread (Doppelganggewinde) – ensures quick and secure screw grip, enabling installation without expansion plugs.
• Self-tapping tip – allows stress-free frame fixation in a hole with a diameter of φ 6–6.5 mm, without vibrations and risk of cracking.
• IFT certified quality – product tested and approved by the Institute of Window Technology in Rosenheim (IFT).

Applications:

• Installation and leveling of window and door frames in PVC, wooden, and aluminum constructions.
• Permanent fixing of frames in concrete, solid and ceramic bricks, blocks, and lightweight concrete.
• Installation of sub-sill profiles and bases in insulation systems.
• Fixing lightweight aluminum and steel constructions without using expansion plugs.

Technical Data:

• Catalog Code: 604175P152
• Brand: PARCO
• Material: Hardened steel, galvanic zinc plating (Silverline)
• Dimensions: Ø 7.5 mm × 152 mm
• Head: Pan Head
• Drive: Torx TX30
• Thread: Full, double (Doppelganggewinde)
• Pre-drilling: Ø 6–6.5 mm
• Quantity per pack: 100 pcs
• Country of production: Germany

Order Parco Frame Screws 7.5 × 152 mm with Pan Head at www.camillo.pl – a combination of performance, aesthetics, and reliability in every installation!
