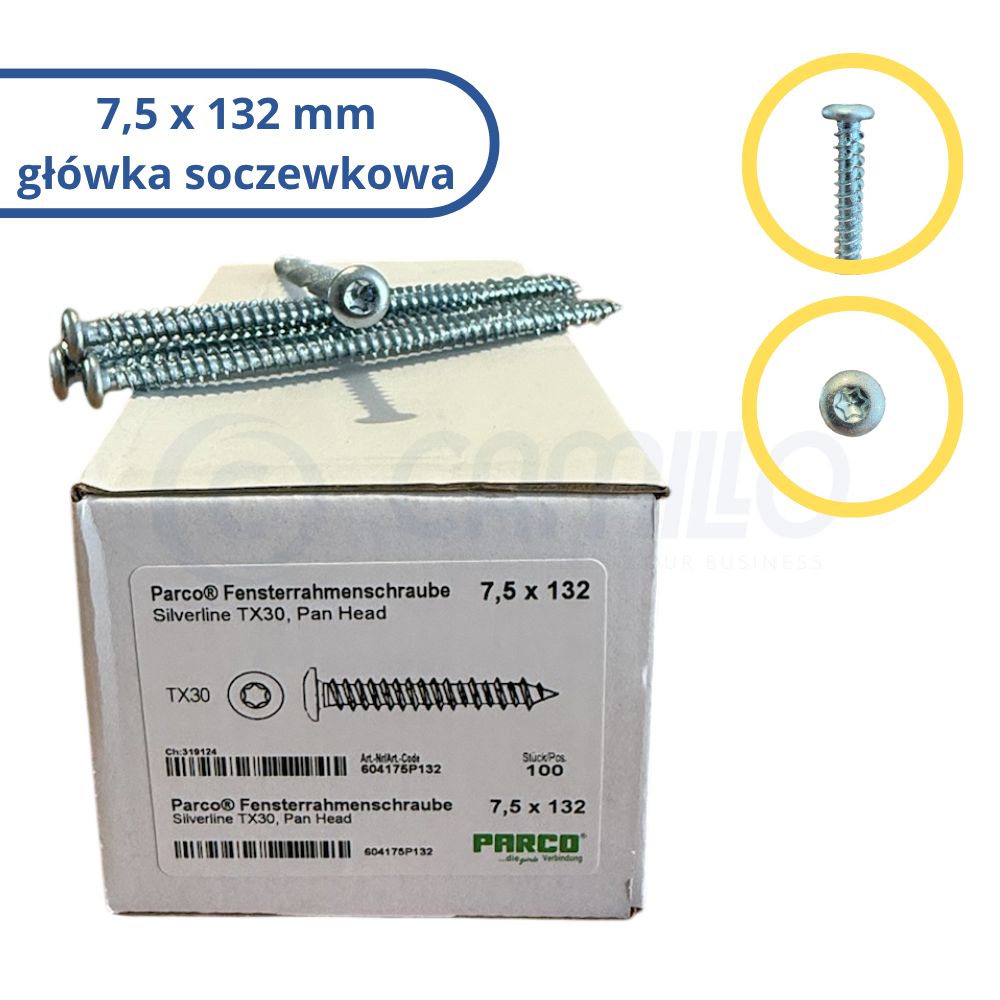

Parco Frame Screw 7.5×132 mm Pan Head 100 pcs

Parco Frame Screw 7.5 × 132 mm, Pan Head (TX30), Zinc Coated

A sturdy frame screw by PARCO, designed for mounting window and door frames as well as lightweight aluminum-PVC constructions directly into concrete, brick, and other substrates.

Product Advantages:

• Aesthetic and Safe Pan Head – The convex Pan Head shape prevents sinking into the material, protecting thin-walled PVC or aluminum profiles from deformation.
• Increased Clamping Surface – The larger head-to-frame contact area distributes load evenly, minimizing damage risks.
• No Washers Needed – The Pan Head eliminates the need for additional washers, speeding up work and reducing material costs.
• Double Thread (Doppelganggewinde) – Ensures fast and secure screw gripping, allowing installation without expansion plugs.
• Self-Tapping Tip – Enables stress-free frame mounting in holes with a diameter of φ 6–6.5 mm, reducing vibrations and the risk of cracks.
• IFT Certified Quality – Tested and approved by the Institute for Window Technology in Rosenheim (IFT).

Applications:

• Mounting and leveling window and door frames in PVC, wooden, and aluminum constructions.
• Durable fastening of frames in concrete, solid and ceramic bricks, hollow blocks, and lightweight concrete.
• Installing sub-sill profiles and bases in insulation systems.
• Fastening lightweight aluminum and steel structures without the need for expansion plugs.

Technical Specifications:

• Catalog Code: 604175P132
• Brand: PARCO
• Material: Hardened steel, galvanic zinc coating (Silverline)
• Dimensions: Ø 7.5 mm × 132 mm
• Head: Pan Head
• Drive: Torx TX30
• Thread: Full, double (Doppelganggewinde)
• Pre-drilling Diameter: Ø 6–6.5 mm
• Quantity per Package: 100 pcs.
• Country of Production: Germany

Order Parco Frame Screws 7.5 × 132 mm with Pan Head at www.camillo.pl – a perfect combination of efficiency, aesthetics, and reliability for every installation!
