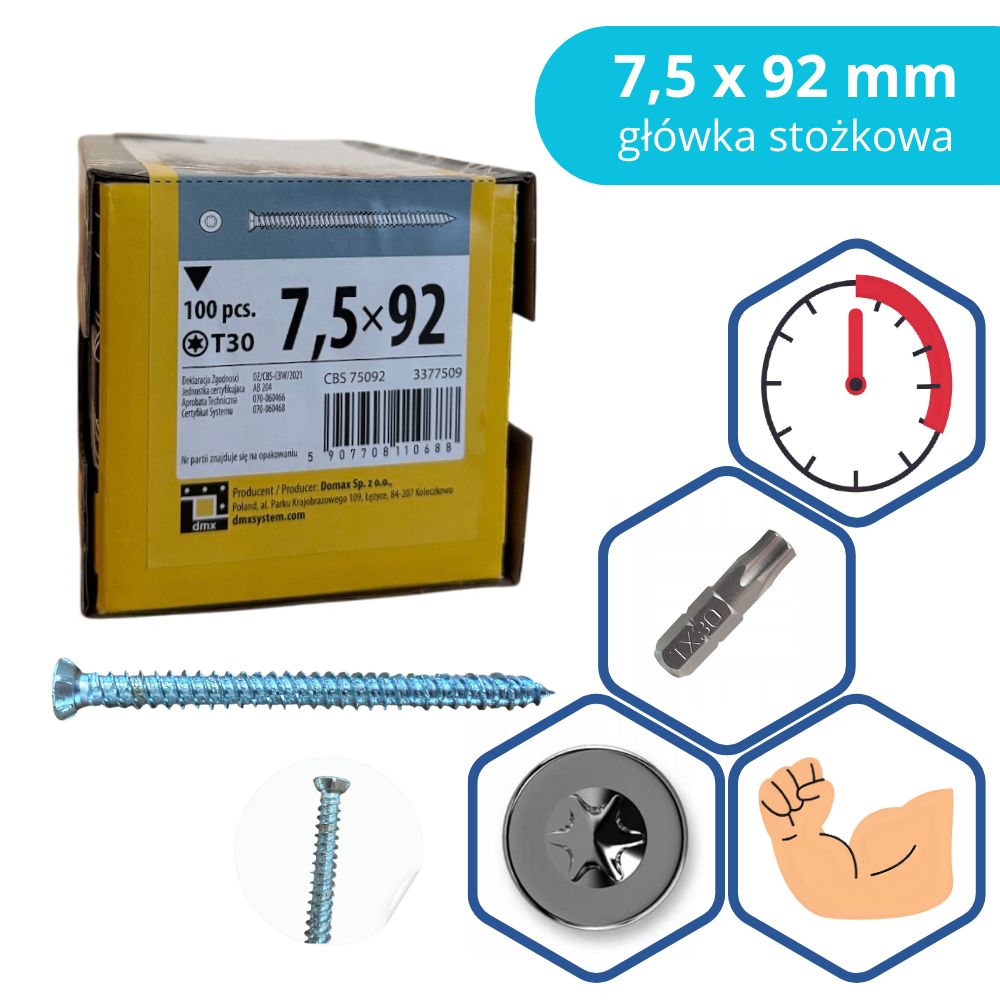

Frame Screw Domax 7.5×92 mm Conical 100 pcs

Package contains 100 pcs of screws.

ADVANTAGES / FEATURES:

• ✔ quick and easy installation
• ✔ thread along the entire length prevents deformation of the frame and ensures it remains at the correct distance from the wall
• ✔ different screw lengths ensure solid fastening even for distant walls
• ✔ frame screws can be used for both very soft (aerated concrete) and very hard materials (stone, concrete)
• ✔ TORX socket ensures optimal force transfer.

APPLICATION:

CBS and CBW frame screws by DMX® are used for fastening window frames to:

• concrete
• stone
• bricks
• soft materials such as aerated concrete.

They allow the use of a single type of screw for mounting windows and doors in walls and for connecting windows into sets. The screws are made of hardened steel and protected with silver galvanized zinc.

Basic technical data:

• diameter: 7.5 mm
• length: 92 mm
• head diameter: 8 mm
• hole diameter: 6 mm
• type: conical
• socket type: T30
• coating: silver galvanized zinc

🔽Files to download:

• Technical drawing
• Usage instructions
• Declaration of conformity – DOP
