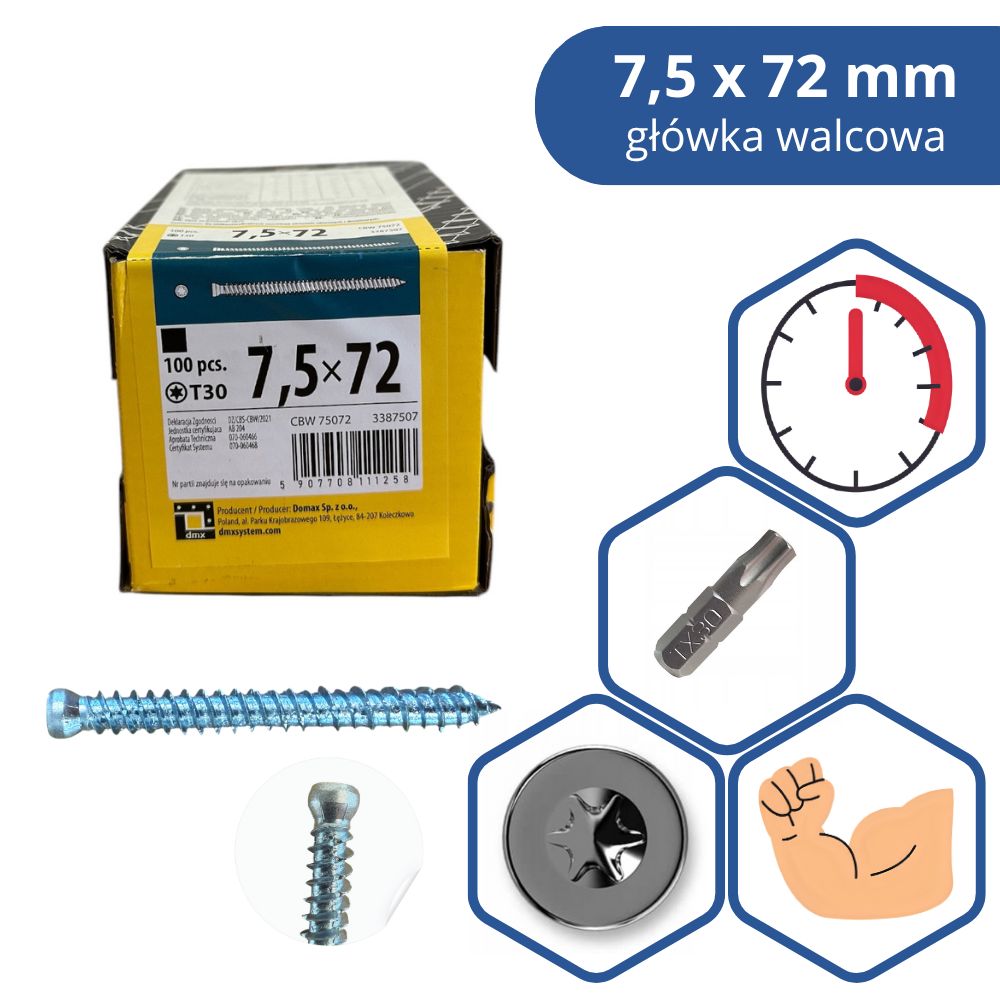

Domax Frame Screw 7.5×72 mm Cylindrical 100 pcs

Package contains 100 pcs screws.

ADVANTAGES / FEATURES:

• ✔ Quick and easy installation
• ✔ Thread along the entire length prevents deformation of the frame and ensures it stays at the set distance from the wall
• ✔ Various screw lengths provide solid fixing even for walls that are far apart
• ✔ Frame screws can be used for both very soft (aerated concrete) and very hard materials (stone, concrete)
• ✔ TORX socket ensures optimal force transmission.

APPLICATION:

CBS and CBW frame screws by DMX® are used for fixing window frames to:

• concrete
• stone
• bricks
• soft materials like aerated concrete.

They allow the use of one type of screw for the installation of windows and doors in walls and for connecting windows into sets. The screws are made of hardened steel with a galvanic silver zinc coating.

Key technical data:

• diameter: 7.5 mm
• length: 72 mm
• head diameter: 8 mm
• hole diameter: 6 mm
• type: cylindrical
• socket type: T30
• coating: galvanic silver zinc

🔽Files to download:

• Technical drawing
• Usage instructions
• Declaration of conformity - DOP
