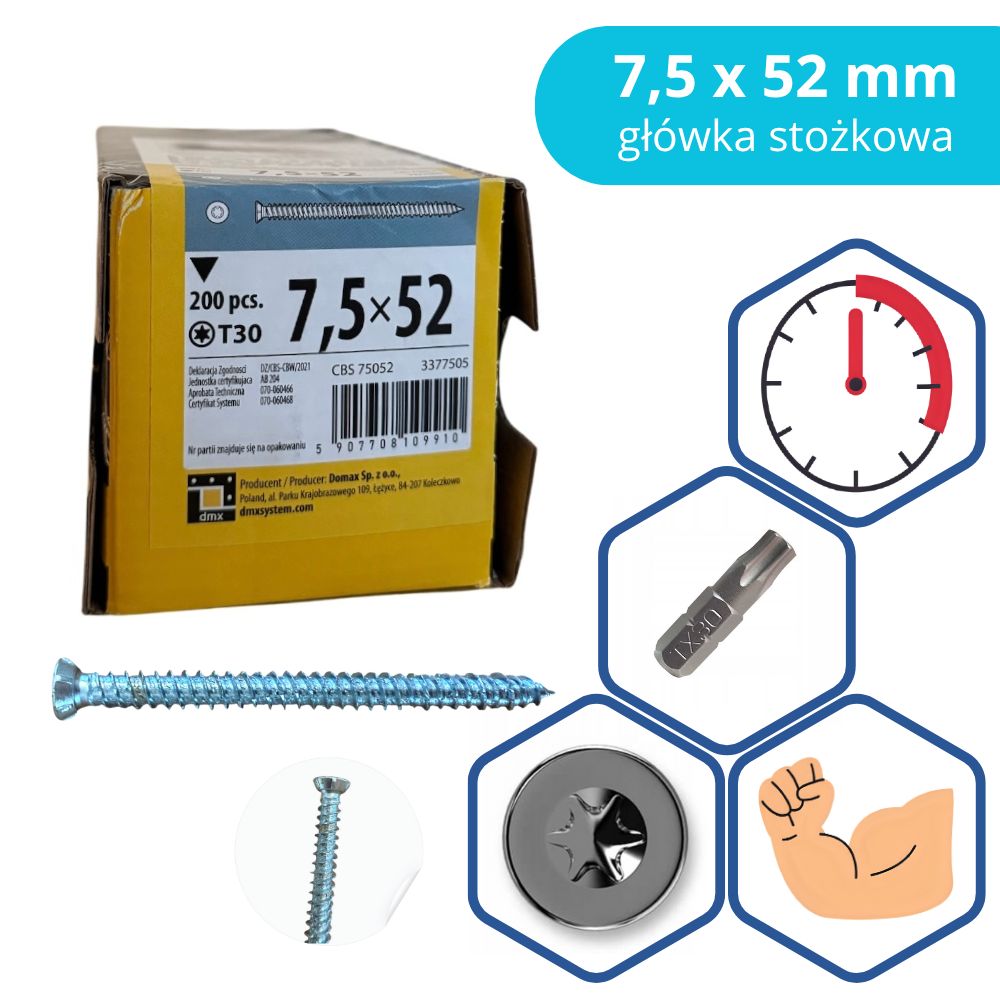

Frame screw Domax 7.5×52 mm conical 200 pcs

The package contains 200 pcs of screws.

ADVANTAGES / FEATURES:

• ✔ quick and easy installation
• ✔ thread along the entire length prevents deformation of the frame and ensures it remains at the set distance from the wall
• ✔ various screw lengths ensure solid fastening even for distant walls;
• ✔ frame screws can be used for both very soft (aerated concrete) and very hard materials (stone, concrete);
• ✔ the TORX socket ensures optimal force transmission.

APPLICATION:

CBS and CBW frame screws by DMX® are used for fastening window frames to:

• concrete
• stone
• bricks
• soft materials, e.g., aerated concrete.

They allow the use of a single type of screw for mounting windows and doors in masonry and for joining windows into sets. The screws are made of hardened steel protected by silver galvanic zinc.

Basic technical data

• diameter: 7.5 mm
• length: 52 mm
• head diameter: 8 mm
• hole diameter: 6 mm
• type: conical
• socket type: T30
• coating: silver galvanic zinc

🔽Downloadable files:

• Technical drawing
• Usage instructions
• Declaration of conformity – DOP
