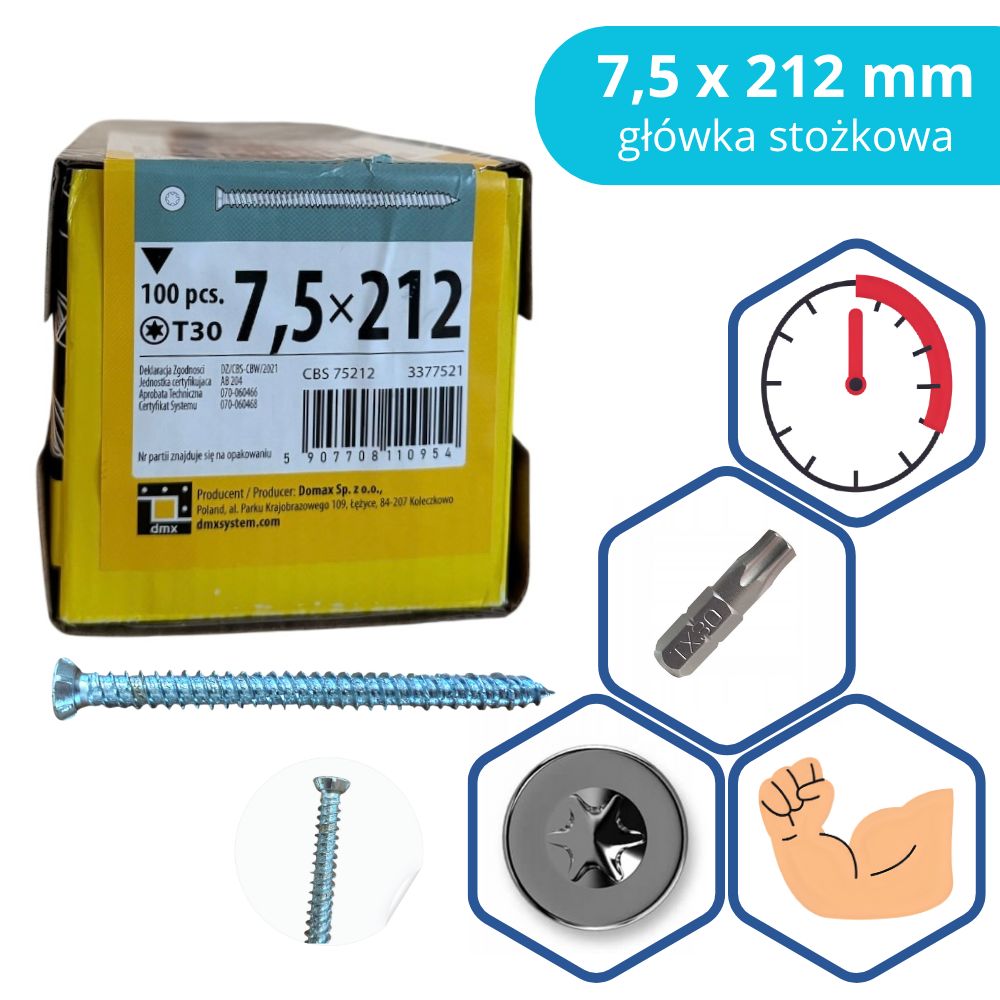

Frame Screw Domax 7.5×212 mm Conical 100 pcs

Package of 100 pcs screws.

ADVANTAGES / FEATURES:

• ✔ quick and easy installation
• ✔ full-length thread prevents frame deformation and ensures it remains at the specified distance from the wall
• ✔ various screw lengths provide solid fastening even for distant walls
• ✔ frame screws can be used for both very soft (aerated concrete) and very hard materials (stone, concrete)
• ✔ TORX socket ensures optimal force transmission.

APPLICATION:

CBS and CBW frame screws by DMX® are used for fixing window frames to:

• concrete
• stone
• brick
• soft materials like aerated concrete.

They allow the use of a single screw type for mounting windows and doors in masonry and connecting windows into sets. The screws are made of hardened steel and protected with silver galvanic zinc.

Key technical data:

• diameter: 7.5 mm
• length: 212 mm
• head diameter: 8 mm
• hole diameter: 6 mm
• type: conical
• socket type: T30
• coating: silver galvanic zinc

🔽Files to download:

• Technical drawing
• Usage instructions
• Declaration of conformity – DOP
