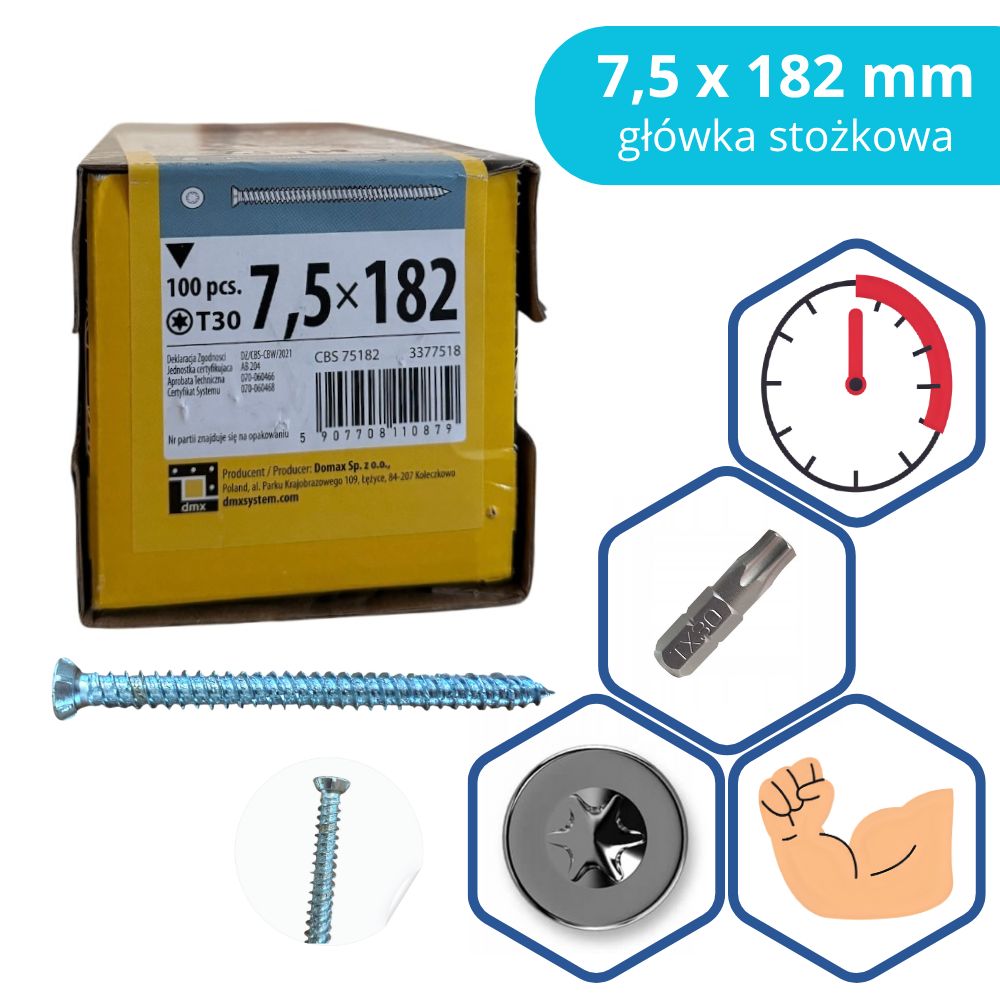

Frame screw Domax 7.5×182 mm conical 100 pcs

The package includes 100 pcs of screws.

ADVANTAGES / FEATURES:

• ✔ quick and easy installation
• ✔ the thread along the entire length prevents deformation of the frame and keeps it at a fixed distance from the wall
• ✔ various screw lengths ensure solid fastening even for walls that are far apart
• ✔ frame screws can be used for both very soft (aerated concrete) and very hard materials (stone, concrete)
• ✔ the TORX socket ensures optimal force transmission.

APPLICATION:

CBS and CBW frame screws by DMX® are used for fixing window frames to:

• concrete
• stone
• bricks
• soft materials like aerated concrete.

They allow the use of a single type of screw for mounting windows and doors in masonry as well as connecting windows into sets. The screws are made of hardened steel and protected with silver galvanic zinc.

Basic technical data:

• diameter: 7.5 mm
• length: 182 mm
• head diameter: 8 mm
• hole diameter: 6 mm
• type: conical
• socket type: T30
• coating: silver galvanic zinc

📄 Downloadable files:

• Technical drawing
• Usage instructions
• Declaration of conformity – DOP
