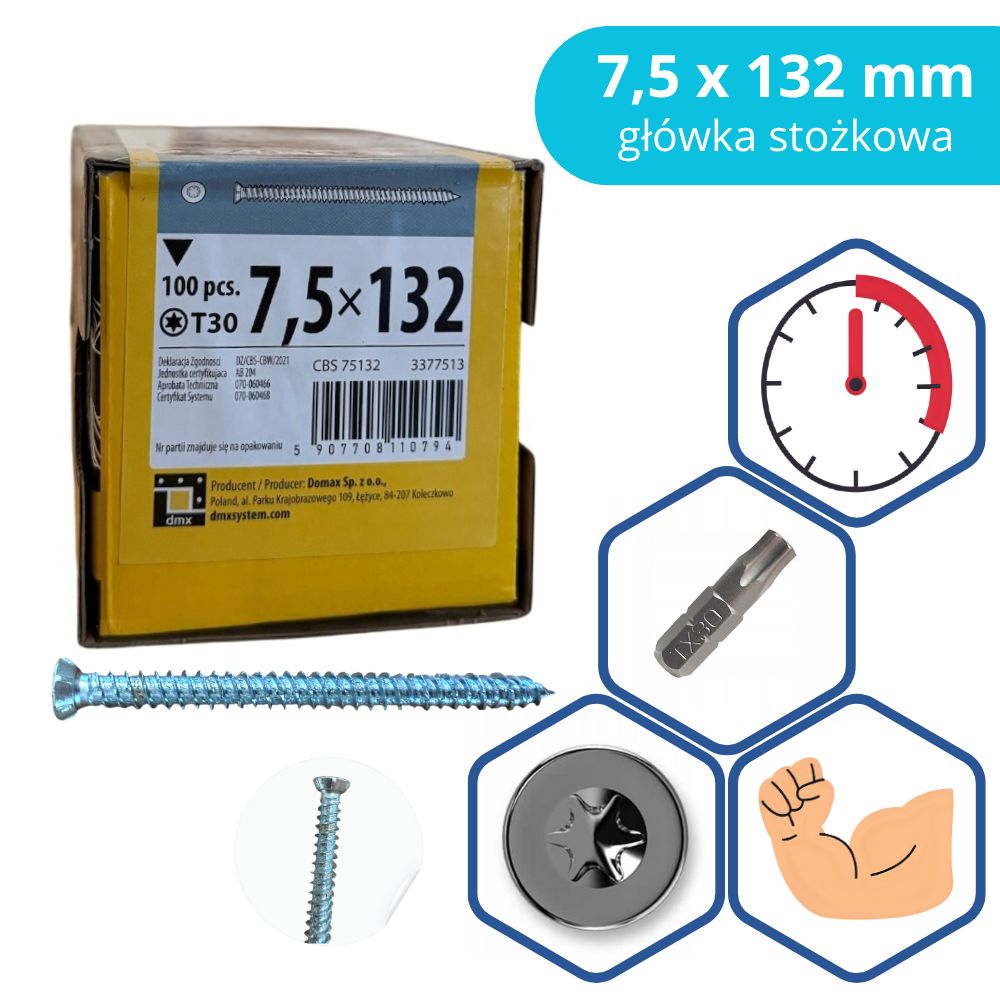

Domax Frame Screw 7.5×132 mm Countersunk 100 pcs

The package contains 100 pcs of screws.

ADVANTAGES / FEATURES:

• ✔ Quick and easy installation
• ✔ Thread along the entire length prevents deformation of the frame and ensures it remains at a fixed distance from the wall.
• ✔ Various screw lengths ensure secure fastening even for distant walls.
• ✔ Frame screws can be used for both very soft (aerated concrete) and very hard materials (stone, concrete).
• ✔ TORX socket ensures optimal force transmission.

APPLICATION:

CBS and CBW frame screws by DMX® are used for fixing window frames to:

• concrete
• stone
• brick
• soft materials, e.g., aerated concrete.

They allow the use of a single type of screw for mounting windows and doors in walls and connecting windows into sets. The screws are made of hardened steel protected with silver galvanized zinc.

Basic technical data:

• diameter: 7.5 mm
• length: 132 mm
• head diameter: 8 mm
• hole diameter: 6 mm
• type: countersunk
• socket type: T30
• coating: silver galvanized zinc

🔽Downloadable files:

Technical drawing
Usage instructions
Declaration of conformity – DOP
