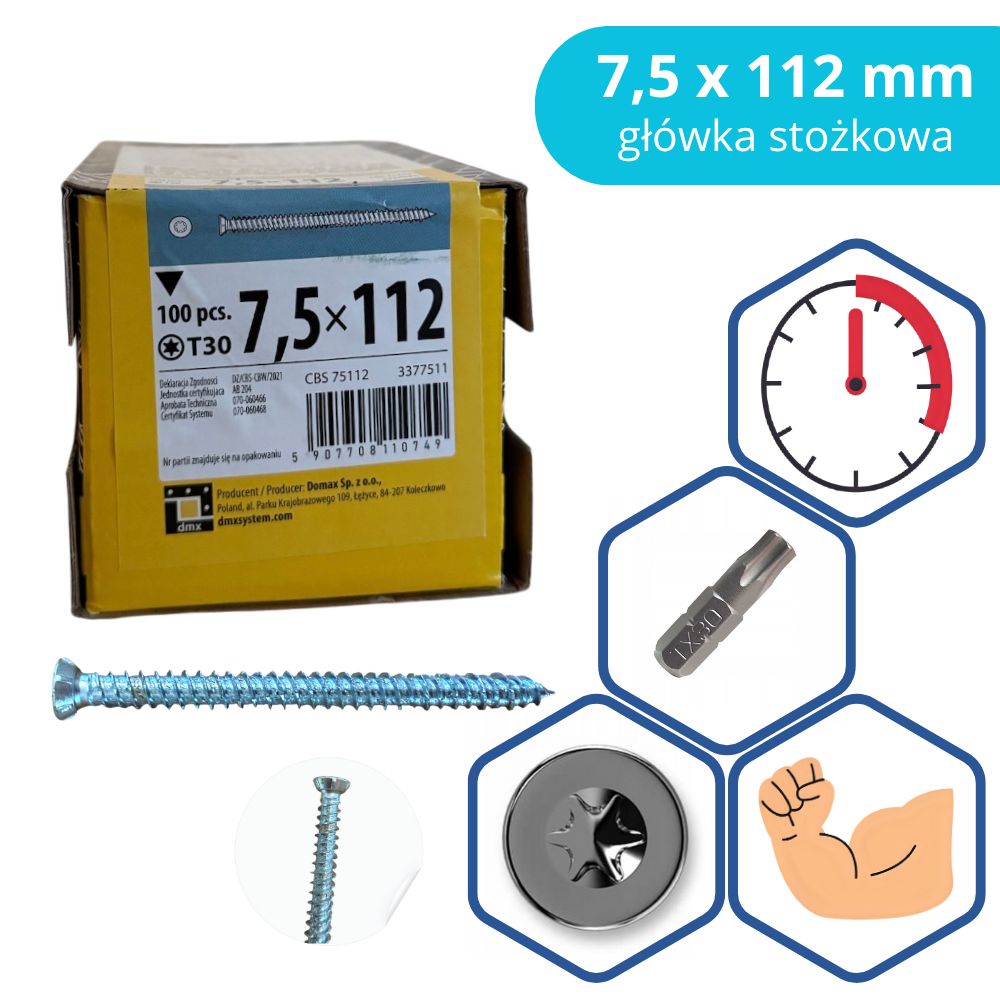

Frame screw Domax 7.5×112 mm conical 100 pcs

The package contains 100 pcs of screws.

ADVANTAGES / FEATURES:

• ✔ quick and easy installation
• ✔ thread along the entire length prevents deformation of the frame and ensures it remains at the set distance from the wall
• ✔ different screw lengths provide solid fastening even for distant walls
• ✔ frame screws can be used for both very soft (aerated concrete) and very hard materials (stone, concrete)
• ✔ TORX socket ensures optimal force transmission.

APPLICATION:

CBS and CBW frame screws by DMX® are used for attaching window frames to:

• concrete
• stone
• brick
• soft materials like aerated concrete.

They allow the use of a single type of screw for mounting windows and doors in masonry and for connecting windows into sets. The screws are made of hardened steel and coated with silver galvanic zinc.

Key technical data:

• diameter: 7.5 mm
• length: 112 mm
• head diameter: 8 mm
• hole diameter: 6 mm
• type: conical
• socket type: T30
• coating: silver galvanic zinc

🔽Files to download:

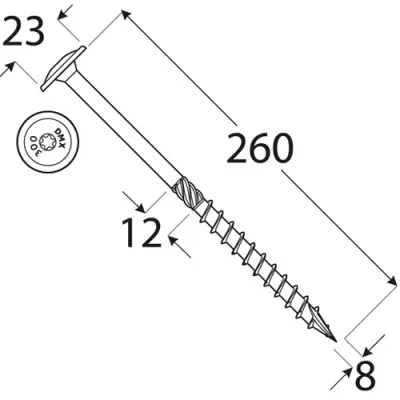

• Technical drawing
• Usage instructions
• Declaration of conformity – DOP
