Quick Installation Dowels SM-08080 8×80 mm – 100 pcs. | Klimas Wkręt-met

✅ Quick through installation
• 🧩 PE-HD sleeve + 4.9×85 (PZ2) screw
• 🛡️ ETA-19/0156, ITB-KOT-2018/0528
Code: SM-08080
Package: 100 pcs.

Applications

• Window and door joinery: Installation of accessories around the frame – window/cover strips, guides, mounting brackets/clips, starter profiles, covers, and lightweight accompanying elements. (SM dowel is for accessories – not for direct frame anchoring).
• Drywall and installations: Baseboards, G-K profiles, installation brackets and trays, lightweight hanging elements.
• Substrates: Standard concrete, solid and hollow bricks (ceramic/silicate), lightweight aggregate elements, aerated concrete (AAC).

For direct anchoring of window and door frames, use frame screws or frame dowels.

Why Choose It

• Speed and consistency – Drill Ø8, insert the sleeve, drive the screw, and you're done.
• Clean alignment – Conical head and reinforced base ensure proper pressing of strips/profiles.
• Verified documentation – ETA-19/0156 + ITB-KOT-2018/0528.

Technical Parameters (SM-08080)

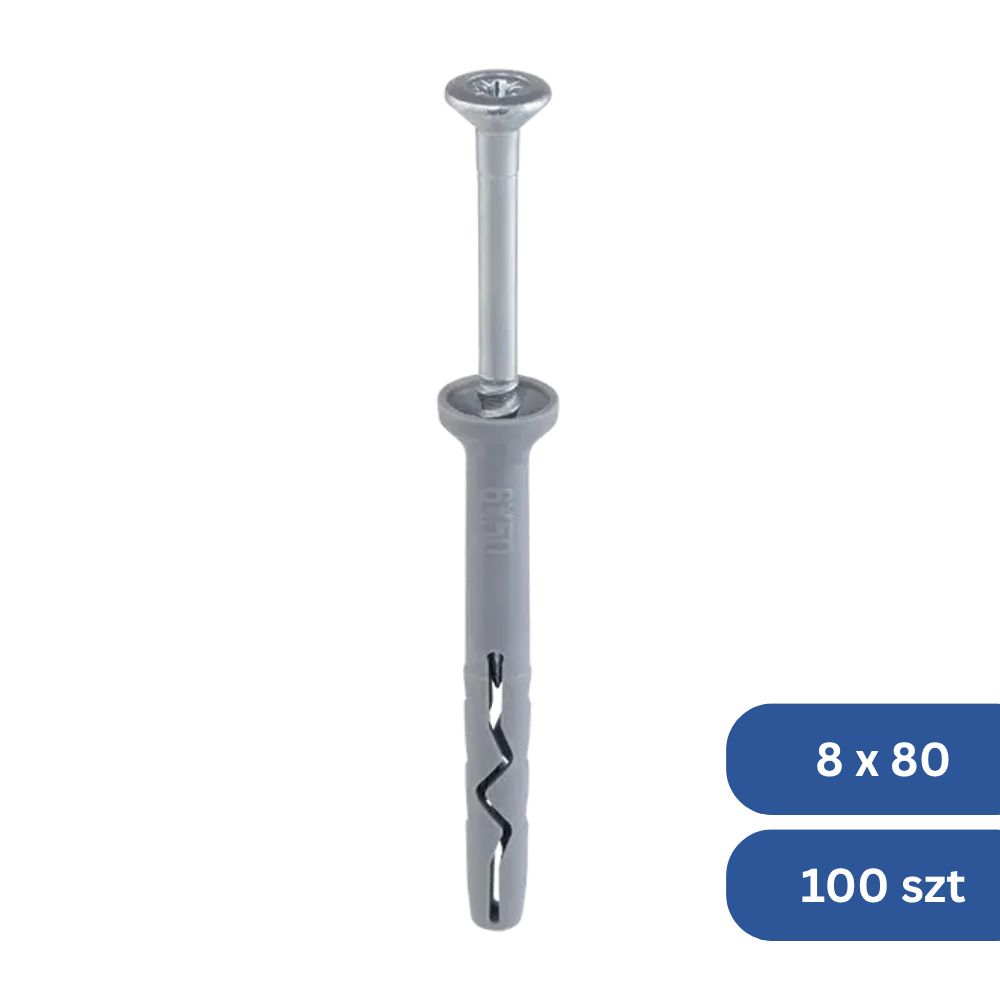

• Dowel: 8×80 mm
  Screw: 4.9×85 mm, PZ2, conical head.
• Hole/drill (d0): Ø8 mm
  Effective anchoring (heff): 40 mm
  Hole depth (h0): 50 mm
  Max usable length (tfix): 40 mm.
• Sleeve: PE-HD
  Screw: Zinc-plated steel.
• Package: 100 pcs. (SM 8×80 line).

Installation Instructions (Summary)

1. Drill Ø8 mm (in solid materials, ~10 mm deeper than heff).
2. Clean the hole.
3. Insert the sleeve, drive the screw until the head is flush.

Compliance / Documents

• European Technical Assessment: ETA-19/0156
• National Technical Assessment: ITB-KOT-2018/0528.
