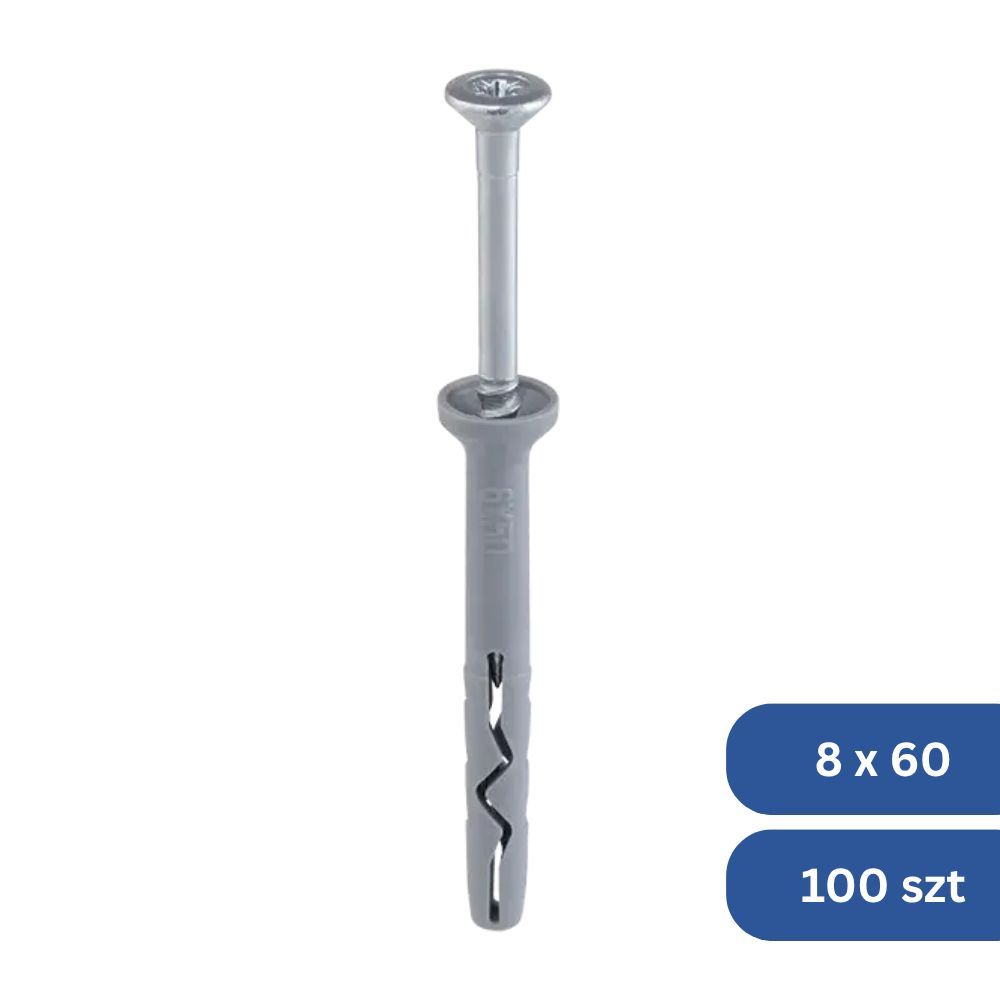

Quick Mounting Plugs SM-08060 8×60 mm – 100 pcs. | Klimas Wkręt-met

✅ Quick through mounting • 🧩 sleeve PE-HD + screw 4.9×65 (PZ2) • 🛡️ ETA-19/0156, ITB-KOT-2018/0528.
EAN: 5907704407270 • Code: SM-08060 • Package: 100 pcs.

Applications

• Window and door joinery: mounting accessories around the frame – window/covering strips, guides, brackets/mounting clips, starter profiles, covers, and lightweight accompanying elements. (SM plug is for accessories – not for direct anchoring of frames).
• Drywall constructions and installations: skirting boards, G-K profiles, installation brackets and trays, lightweight hanging elements.
• Substrates: regular concrete, solid and hollow bricks (ceramic/silicate), lightweight aggregate elements, cellular concrete (AAC).

For direct anchoring of window and door frames, use frame screws or frame plugs.

Why choose this product

• Speed and repeatability – drill Ø8, insert the sleeve, drive the screw and it's done.
• Clean flush mounting – conical head and proper geometry ensure good clamping of strips and profiles.
• Reliable parameters – complete documentation: ETA-19/0156 + ITB-KOT-2018/0528.

Technical specifications (SM-08060)

• Plug: 8×60 mm • Screw: 4.9×65 mm, PZ2, conical head.
• Hole / drill (d0): Ø8 mm • Effective anchoring (heff): 40 mm • Hole depth (h0): 50 mm • Max. usable length (tfix): 20 mm.
• Sleeve: PE-HD • Screw: zinc-coated steel / optionally SQ Ceramic.
• Package: 100 pcs. (SM series 8×60).

Installation instructions (summary)

1. Drill Ø8 mm (in solid materials ~10 mm deeper than planned anchoring).
2. Clean the hole.
3. Insert the sleeve, drive the screw flush with the mounted element.

Compliance / Documentation

• European Technical Assessment: ETA-19/0156
• National Technical Assessment: ITB-KOT-2018/0528.
