Quick installation plugs SM-06060 6×60 mm – 200 pcs | Klimas Wkręt-met

✅ Quick through-mounting • 🧩 sleeve PE-HD + zinc-coated screw 3.9×65 (PZ2) • 🛡️ ETA-19/0156, ITB-KOT-2018/0528.
EAN: 5907704407249 • Code: SM-06060 • Package: 200 pcs.

Applications

• Window and door joinery: installation of accessories around the frame – window/masking strips, guides, brackets/mounting clamps, starter profiles, covers, and lightweight accompanying elements. (SM dowel is for accessories – not for direct anchoring of frames).
• Drywalls and installations: skirting boards, G-K profiles, holders, and installation troughs, lightweight hanging elements.
• Substrates: regular concrete, solid and hollow bricks (ceramic/silicate), elements with lightweight aggregate, cellular concrete (AAC).

Why choose it

• Speed and repeatability – drill Ø6, insert the sleeve, drive in the screw, and it's done.
• Clean flush – conical head and proper geometry provide good clamping of strips and profiles.
• Reliable parameters – complete documentation: ETA-19/0156 + ITB-KOT-2018/0528.

Technical parameters (SM-06060)

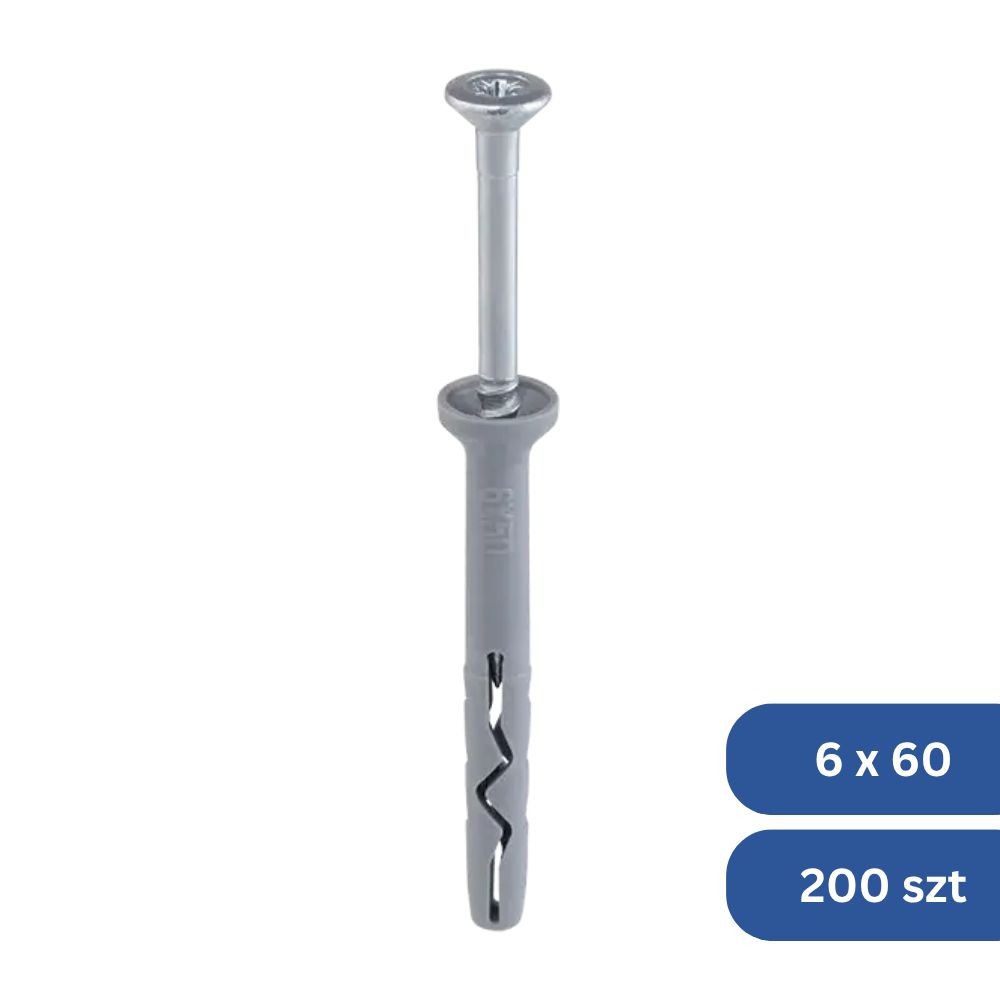

• Dowel: 6×60 mm • Screw: 3.9×65 mm, PZ2, conical head.
• Sleeve: PE-HD, screw: zinc-coated steel.
• Hole / drill (d0): Ø6 mm • Effective anchoring (heff): 28 mm • Hole depth (h0): 40 mm • Max usable length (tfix): 32 mm.
• Package: 200 pcs. (SM 6×60 line).

Installation instructions (summary)

1. Drill Ø6 mm (in solid materials ~10 mm deeper than planned anchoring).
2. Clean the hole.
3. Insert the sleeve, drive in the screw until the head is flush with the mounted element.

Compliance / Documents

• European Technical Assessment: ETA-19/0156
• National Technical Assessment: ITB-KOT-2018/0528
