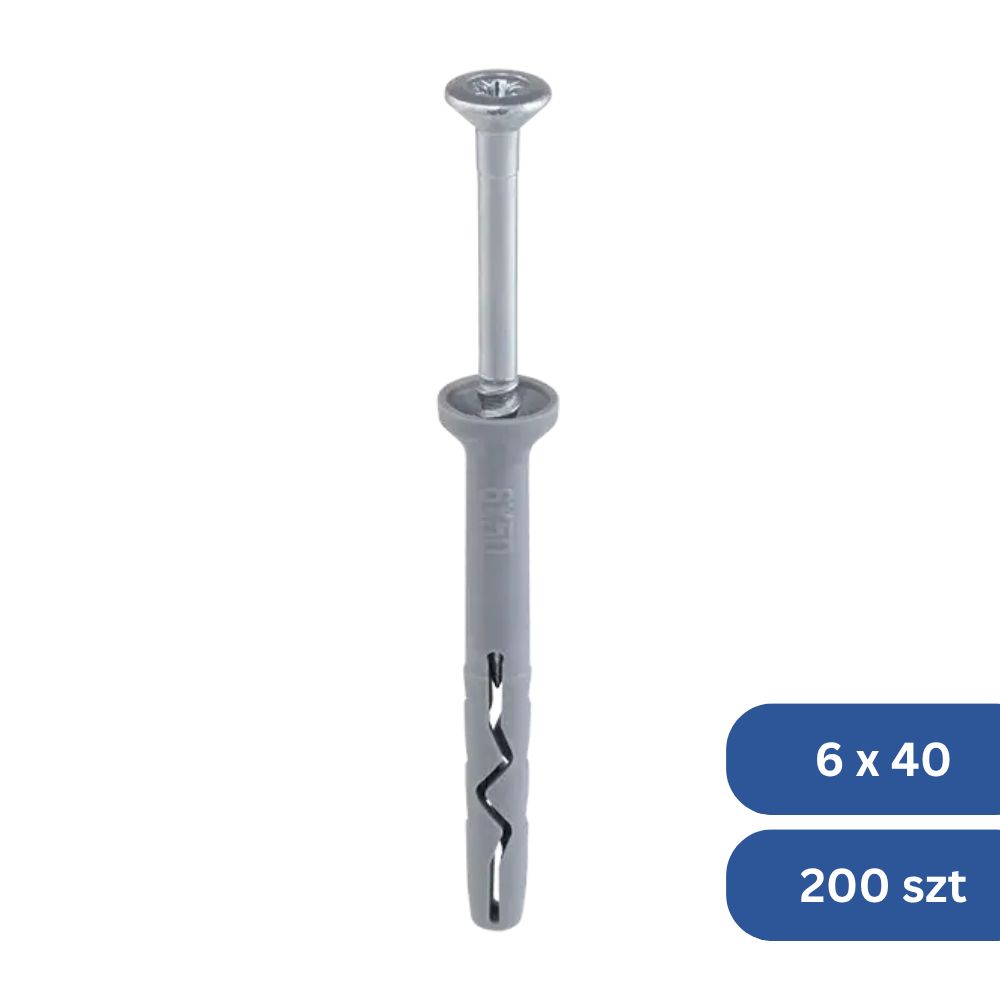

Quick Mounting Plugs SM-06040 6×40 mm – 200 pcs. | Klimas Wkręt-met

✅ Quick through-mounting • 🧩 Sleeve made of PE-HD + galvanized screw 3.9×45 (PZ2) • 🛡️ ETA-19/0156, ITB-KOT-2018/0528.

EAN: 5907704407232 • Code: SM-06040 • Package: 200 pcs.

Application

• Window and door joinery: Installation of accessories around the frame – window/cover strips, guides, mounting brackets/clips, starter profiles, covers, and lightweight accompanying elements. (The SM plug is for accessories – not for direct frame anchoring).
• Drywall and installations: Skirting boards, G-K profiles, holders and installation ducts, lightweight hanging elements.
• Substrates: Normal concrete, solid and hollow bricks (ceramic/silicate), lightweight aggregate concrete, aerated concrete (AAC).

For direct anchoring of window and door frames, we recommend frame screws or frame plugs.

Advantages

• Speed and repeatability – Drill Ø6, insert the sleeve, hammer in the screw, and you're done.
• Clean flush finish – Countersunk head and proper geometry ensure good pressure of strips and profiles.
• Reliable parameters – Complete documentation: ETA-19/0156 + ITB-KOT-2018/0528.

Technical Specifications

• Plug: 6×40 mm • Screw: 3.9×45 mm • Drive: PZ2 • Head: Countersunk
• Sleeve material: PE-HD • Screw: galvanized steel
• Hole / Drill: Ø6 mm • Effective anchoring (heff): 28 mm • Hole depth: 40 mm
• Package: 200 pcs.

Installation Instructions (Summary)

1. Drill Ø6 mm (in solid materials approx. 10 mm deeper than the planned anchoring).
2. Clean the hole.
3. Insert the sleeve, hammer in the screw until the head is flush with the mounted element.

Compliance / Documents

• European Technical Assessment: ETA-19/0156
• National Technical Assessment: ITB-KOT-2018/0528
