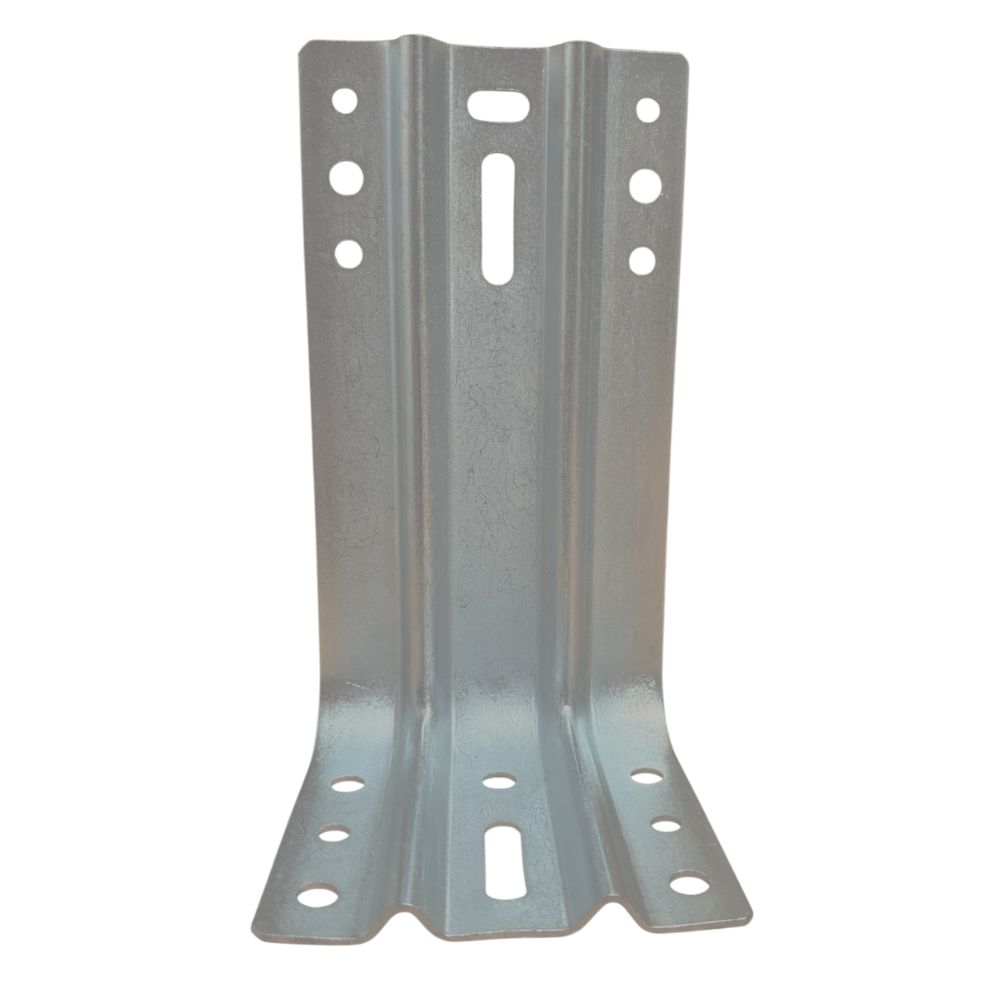

Mounting Angle SILISTO 100×300 mm, galvanized, sheet 2 mm

Robust mounting angles by Nögel, made from high-quality galvanized sheet metal, designed for the installation of window and door components, especially "floor-to-ceiling" glazing. They ensure stable support, precise leveling, and long-term protection against corrosion.

Product Advantages:

• Durability and Resistance: Galvanized sheet metal with a thickness of 2 mm ensures corrosion resistance and maintains strength even in challenging conditions.
• Precise Fit: Dimensions of 100 × 300 mm allow for universal use under sills and extensions.
• Secure Installation: Numerous mounting holes Ø 8 mm and Ø 9 mm facilitate quick and solid attachment of the angle using standard screws or anchors.
• Optimal Spacing: Recommended positioning of angles every max 700 mm for even load distribution and increased structural stability.
• Renowned Manufacturer: Nögel Montagetechnik (Twist, Germany) – guarantee of European quality and technical support.

Applications:

• Installation of "floor-to-ceiling" glazing and terrace doors.
• Supporting extensions and bases of window and door components.
• Installation of balcony thresholds and lintel elements.
• Component of insulation systems and cladding of curtain walls.

Technical Data:

• Catalog Code: 512BVZ100X300
• Brand: Nögel Montagetechnik
• Material: Galvanized steel sheet, thickness 2 mm
• Dimensions: 100 × 300 mm (side A × side B)
• Mounting Holes: Ø 8 mm and Ø 9 mm, spaced along both sides
• Recommended Spacing: Max every 700 mm

SILISTO angles are an indispensable component for professional installation teams – ensuring work speed, installation durability, and aesthetic glazing finishes.
