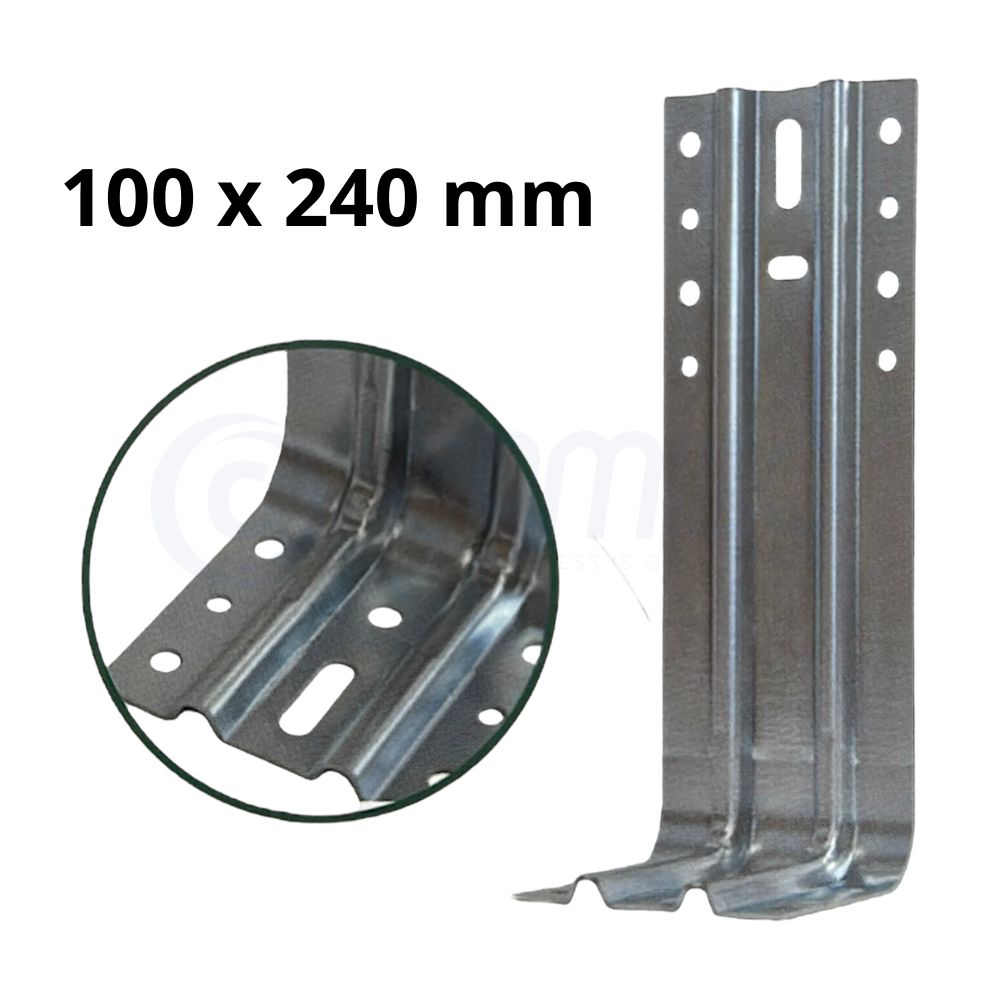

Mounting Angle Bracket SILISTO 100×240 mm, galvanized, 2 mm sheet metal

Durable mounting angle brackets by Nögel, made of high-quality galvanized sheet metal, designed for the installation of window and door elements, especially "floor-to-ceiling" glazing. They provide stable support, precise leveling, and long-lasting corrosion protection.

Product advantages:

• Durability and resistance: galvanized 2 mm thick sheet metal ensures corrosion resistance and strength retention even in tough conditions.
• Precise fit: dimensions of 100 × 240 mm allow universal use for installation under sills and extensions.
• Secure installation: numerous mounting holes Ø 8 mm and Ø 9 mm facilitate quick and solid attachment of the bracket using standard screws or anchors.
• Optimal spacing: recommended placement of brackets max. every 700 mm for even load distribution and increased structural stability.
• Renowned manufacturer: Nögel Montagetechnik (Twist, Germany) – guarantee of European quality and technical support.

Applications:

• Installation of "floor-to-ceiling" glazing and terrace doors.
• Supporting extensions and bases of windows and doors.
• Installation of balcony thresholds and lintel elements.
• Part of insulation systems and cladding walls.

Technical data:

• Catalog code: 512BVZ100X240
• Brand: Nögel Montagetechnik
• Material: galvanized steel sheet, 2 mm thick
• Dimensions: 100 × 240 mm (side A × side B)
• Mounting holes: Ø 8 mm and Ø 9 mm, arranged along both sides
• Recommended spacing: max. every 700 mm

SILISTO brackets are an essential component for professional installation teams – ensuring work efficiency, installation durability, and aesthetic glazing finishes.
