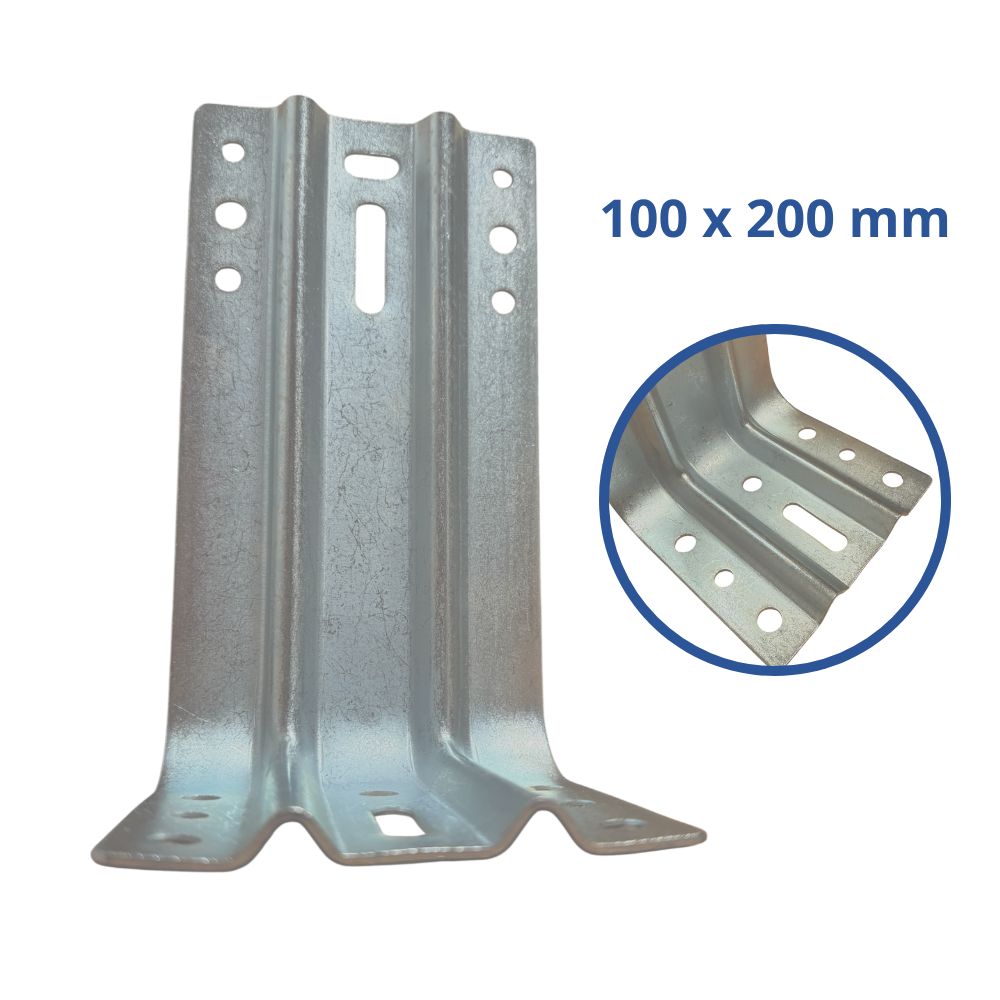

Mounting Bracket SILISTO 100×200 mm, Galvanized, Steel Sheet 2 mm

Durable mounting brackets by Nögel, crafted from high-quality galvanized steel sheet, are designed for installing window and door elements, especially floor-to-ceiling glazing. They provide stable support, precise leveling, and long-lasting corrosion protection.

Product Advantages:

• Durability and Resistance: galvanized steel sheet with a thickness of 2 mm ensures corrosion resistance and maintains strength even in challenging conditions.
• Precise Fit: dimensions of 100 × 200 mm allow for universal use under sills and extensions.
• Secure Installation: multiple mounting holes Ø 8 mm and Ø 9 mm facilitate quick and solid attachment using standard screws or anchors.
• Optimal Spacing: recommended placement of brackets every max 700 mm for even load distribution and increased structural stability.
• Renowned Manufacturer: Nögel Montagetechnik (Twist, Germany) – assurance of European quality and technical support.

Applications:

• installation of floor-to-ceiling glazing and terrace doors,
• supporting extensions and bases of window and door elements,
• installation of balcony thresholds and lintel components,
• part of insulation systems and cladding of curtain walls.

Technical Specifications:

• Catalog Code: 512BVZ100X200
• Brand: Nögel Montagetechnik
• Material: galvanized steel sheet, thickness 2 mm
• Dimensions: 100 × 200 mm (side A × side B)
• Mounting Holes: Ø 8 mm and Ø 9 mm, distributed along both sides
• Recommended Spacing: maximum every 700 mm

SILISTO brackets are an essential component for professional assembly teams – ensuring work efficiency, installation durability, and aesthetic glazing finishes.
