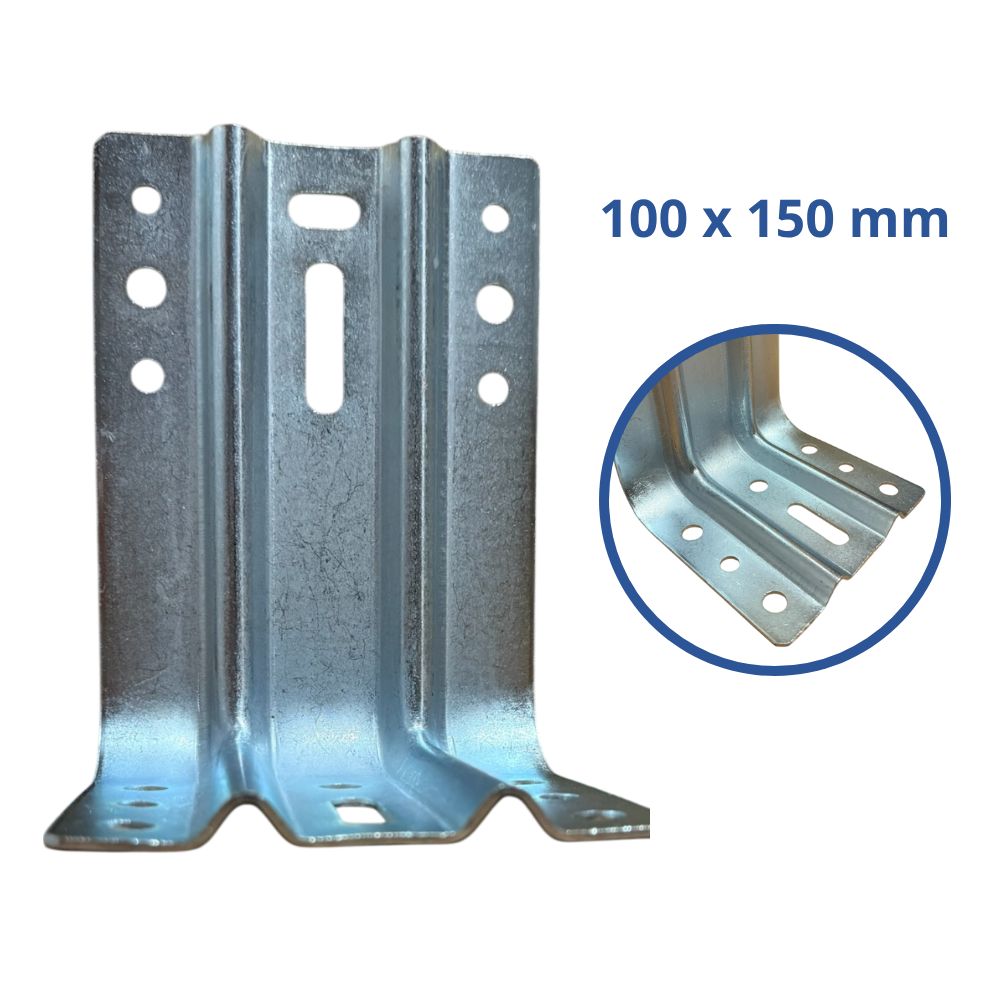

Mounting Bracket SILISTO 100×150 mm, galvanized, 2 mm steel

Robust mounting brackets by Nögel, made from high-quality galvanized steel, are designed for the installation of window and door elements, especially floor-to-ceiling glazing. They provide stable support, precise leveling, and long-lasting corrosion protection.

Product advantages:

• Durability and resistance: Galvanized steel with a thickness of 2 mm ensures corrosion resistance and maintains strength even in harsh conditions.
• Precise fit: Dimensions of 100 × 150 mm allow for universal application under windowsills and extensions.
• Secure installation: Numerous mounting holes Ø 8 mm and Ø 9 mm ensure quick and solid attachment using standard screws or anchors.
• Optimal spacing: Recommended placement of brackets every 700 mm for even load distribution and increased structural stability.
• Renowned manufacturer: Nögel Montagetechnik (Twist, Germany) – a guarantee of European quality and technical support.

Applications:

• Installation of floor-to-ceiling glazing and terrace doors.
• Supporting extensions and bases for window and door frames.
• Installation of balcony thresholds and lintel elements.
• Part of insulation systems and cladding for curtain walls.

Technical data:

• Catalog code: 512BVZ100X150
• Brand: Nögel Montagetechnik
• Material: Galvanized steel, 2 mm thick.
• Dimensions: 100 × 150 mm (side A × side B).
• Mounting holes: Ø 8 mm and Ø 9 mm, distributed along both sides.
• Recommended spacing: Maximum every 700 mm.

SILISTO brackets are an essential component for professional installation teams – ensuring work efficiency, installation durability, and aesthetic glazing finishes.
