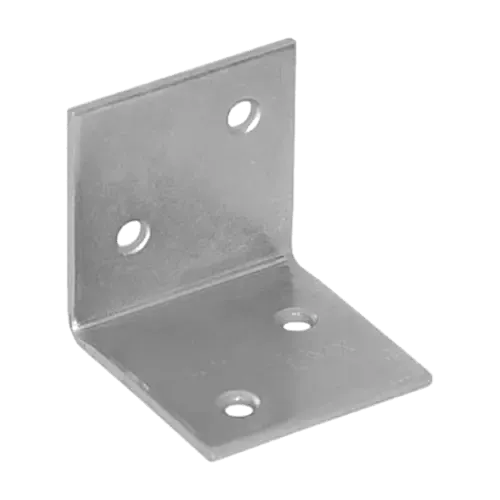

Domax KSO 2 angle bracket 40 × 40 × 40 mm, thickness 1.5 mm

Angle bracket KSO 2 40 × 40 × 40 mm, sheet thickness 1.5 mm, hot-dip galvanized Z275 (code 40124) – Domax

The universal KSO 2 angle bracket by Domax is a proven solution for joining and reinforcing corners of wooden structures, furniture, and lightweight constructions. Made of high-grade DX51D steel and coated with hot-dip galvanized Z275, it ensures corrosion resistance, precise fit, and a load capacity up to 3.49 kN.

Product advantages:

• Durable material and coating: DX51D steel with Z275 zinc coating (min. 275 g/m², thickness 20 µm) provides corrosion protection even in demanding environments
• Optimal load capacity: 3.49 kN (≈ 350 kg) confirmed by tests at the Institute of Window Technology (ETA 22/0631)
• Precise mounting holes: four Ø 4.5 mm holes for ANCHOR ring nails fi 4 mm or wood screws fi 4 mm
• Compact dimensions: 40 × 40 × 40 mm and thickness 1.5 mm — ideal for 90° cross joints without compromising appearance
• Lightweight design: weight of a single bracket just 0.035 kg for easy transport and quick installation

Applications:

• Carpentry and furniture making – joining corners of cabinets, frames, and wooden elements
• Wooden structures – pergolas, roofs, gazebos, load-bearing posts
• Installation of lightweight constructions – partition walls with gypsum boards, substructures for OSB panels
• Facade claddings – fixing starter strips in ETICS systems
• Reinforcement of cross joints and beam supports in lightweight constructions

Technical data:
